Reverse Engineering Remote Control Power Sockets - Part 2: Protocol analysis with oscilloscope

Tooling

If you've read the first blog post of this series, you already know that the intention of this project is to replace the remote control of these devices by a cheap 433 MHz transceiver and a microcontroller platform. In order to do so, the protocol send by the remote control encoder chip PT2262, has to be imitated by the microcontroller. We already know from the previous blog post, that pushing one of the buttons of the remote control forces the PT2262 to create a unique codeword that is send to RF modulator. The datasheet:

The encoded waveform is serially outputted to this pin. When PT2262 is not transmitting, DOUT outputs low (Vss) voltage.

To be able to replace the remote control by an own circuit driven by a microcontroller, the special codeword for each button has to be determind.

Oscilloscope

Oscilloscope DOUT

Using an oscilloscope is the most comfortable way to reverse engineer the remote control protocol. A cheap one like the Rigol DS1052e is more than sufficient. Don't mind if you can't afford one, I will show a cheaper method to get behind the protocol in an upcoming blog post.

Connection

Connect your probe's ground clip to HX2262's pin 9 (VSS) and the probe tip to pin 17 (DOUT).

Rigol DS1052E settings

  • Long Memory (Acquire -> MemDepth -> Long Mem)
  • Single shot trigger

Determining the Oscillating Clock Period α

product info

We already know from the datasheet, that each bit waveform consists of two pulse cycles and each pulse cycle has 16 oscillating time periods. In the case of a Bit "0", one pulse cycle consists of four periods high and twelve periods low clock periods. This pattern can be easily found with the oszilloscope.

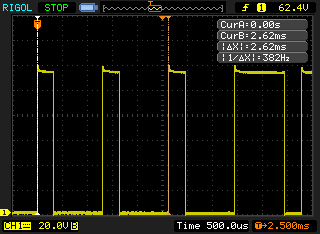

The picture on the left shows the overall time (2.62 ms) for a "0" bit:

\begin{equation*} \alpha = \frac{2620\,us}{2 * (4 + 12)} = 81.875\,us \end{equation*}
product info

The picture on the right shows the low part of the first pulse cycle (12 periods low bits) with a total time of 984 us:

\begin{equation*} \frac{984\,us}{12} = 82\,us \end{equation*}
product info

Given both results, we can asume the oscillating clock period α to be 82 us. According to the datasheet, α can be configured by a resistor connected between pins 15 (OSC 1) and 16 (OSC 2), so it might differ for other power outlets. It might be a good idea to not hardcode the value.

Another approach to determine α is to connect the probe tip to pin 15 (OSC 1) and to directly measure the oscillator frequency. The picture on the left shows one cycle duration of the oscillator frequency. The measured periodic time of 83.6 us fits our previously made assumption of 82 us.

Codeword analysis

A group of Code Bits is called a Code Word. A Code Word consists of 12 AD bits followed by one Sync Bit.
product info

In part 1 of this blog post series, we assumed that the first five bits encode the outlet group part of the codeword, the next five encode the socket within that group and the last two encode the on/off part. We can simply proof this assumption by just pressing the appropriate push-button on the remote control and displaying the waveform on the oscilloscope. A good starting point is to set all pins of the DIP switch (Code Address Pin 0 ~ 5) to off (outlet group 0) and press the on/off push-buttons for each outlet within that group.

The following sequence of images show one complete codeword for pushing the on and off buttons for different combinations of groups and outlets. Please notice that some signal changes overlap, just try to find the bit patterns that are already known from the datasheet. Each picture (except the last one) contains four bit patterns. This makes a summary of 12 AD bits followed by one sync bit. The codewords are then grouped together to their group (five bits), outlet (five bits) and data (two bits) parts.

Outlet group 0 | Outlet 0 | On

Pushing the on button for outlet 0 within group 0 leads to the following codeword:

product infoproduct infoproduct infoproduct info

Codeword: FFFF F0FF FF0F Sync

Group Outlet On/Off
FFFFF 0FFFF 0F

Outlet group 0 | Outlet 0 | Off

Pushing the off button for the same outlet (0) within the same group (0) leads to a very similar result. Solely the last two bits have changed.

product infoproduct infoproduct infoproduct info

Codeword: FFFF F0FF FFF0 Sync

Group Outlet On/Off
FFFFF 0FFFF F0

Outlet group 0 | Outlet 1 | On

The next image series shows the result for pushing the on button for outlet 1 within group 0. This time, the outlet part of the codeword has changed while the group part is still the same.

product infoproduct infoproduct infoproduct info

Codeword: FFFF FF0F FF0F Sync

Group Outlet On/Off
FFFFF F0FFF 0F

Outlet group 1 | Outlet 0 | On

Setting the first DIP switch to "on" and pressing the on button for socket 0 again, leads to another codeword. This time, the first bit group has changed.

product infoproduct infoproduct infoproduct info

Codeword: 0FFF F0FF FF0F Sync

Group Outlet On/Off
0FFFF 0FFFF 0F

Outlet group 31 | Outlet 0 | On

The last image series shows the codeword for the following setup: All remote control DIP switches are set to on (group 31) and the on button for outlet 0 has been pushed.

product infoproduct infoproduct infoproduct info

Codeword: 0000 00FF FF0F Sync

Group Outlet On/Off
00000 0FFFF 0F

Determining all codeword combinations is now either a question of diligence or just a riddle. One could just configure all possible group DIP switch settings, push all buttons and record all codewords with the oscilloscope. However, a more sophisticated approach would be to find the relationship between DIP switch settings and button presses by the already given information.

Conclusion

The assumtions made in part 1 of this series seem to be correct. One codeword consists of five bits for the outlet group, five bits for the outlet within that group and two bits for the on/off part of the codeword.

The timebase for the codeword (Oscillating Clock Period α) was measured with the oscilloscope and seems to be around 82 us.
